Deep Smooth Non Combustible Timber Effect Fireplace Beam
Non combustible deep beams are very realistic and are available in various ranges, sizes and finishes. Moulded from real timber beams and hand finished to create the ultimate high quality looking beam.

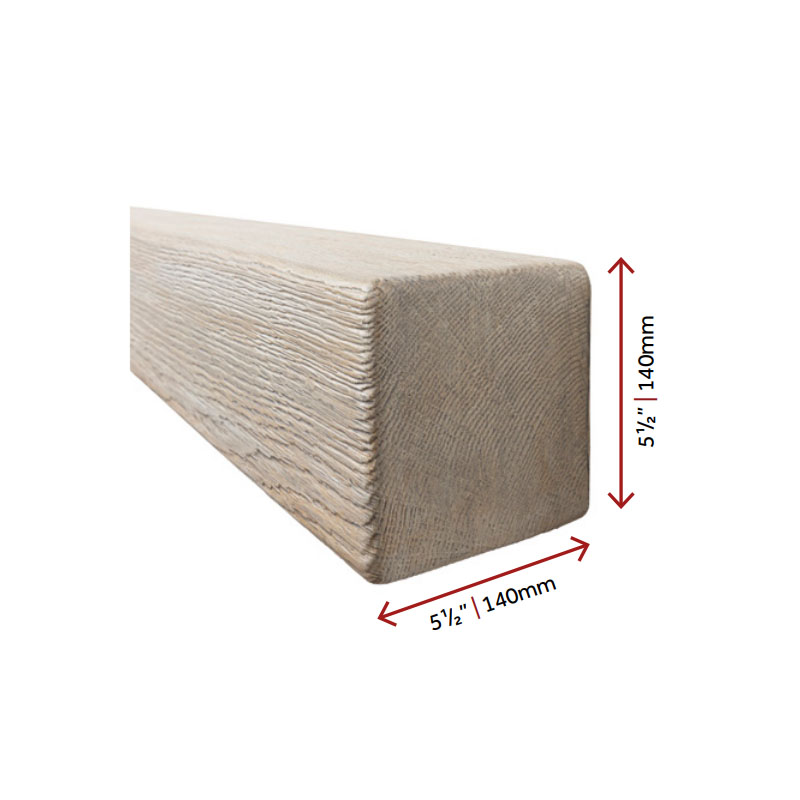

Side Profile
Profile: 51⁄2 x 51⁄2”
Profile: 140 x 140mm
The non combustible is a thick beam that is placed above a fireplace opening. The other type of non combustible beam is a fascia beam which is a slimline beam.
Finish Choices
The Smooth Range has a more modern appearance
Each beam looks incredibly realistic and you won’t believe they are not wood. They are created for use where clearances from a stove don’t allow the use of timber beams.
Actual clearances cannot be recommended or specified as the heat output varies from stove to stove, but we would suggest a minimum of 250mm above the stove.

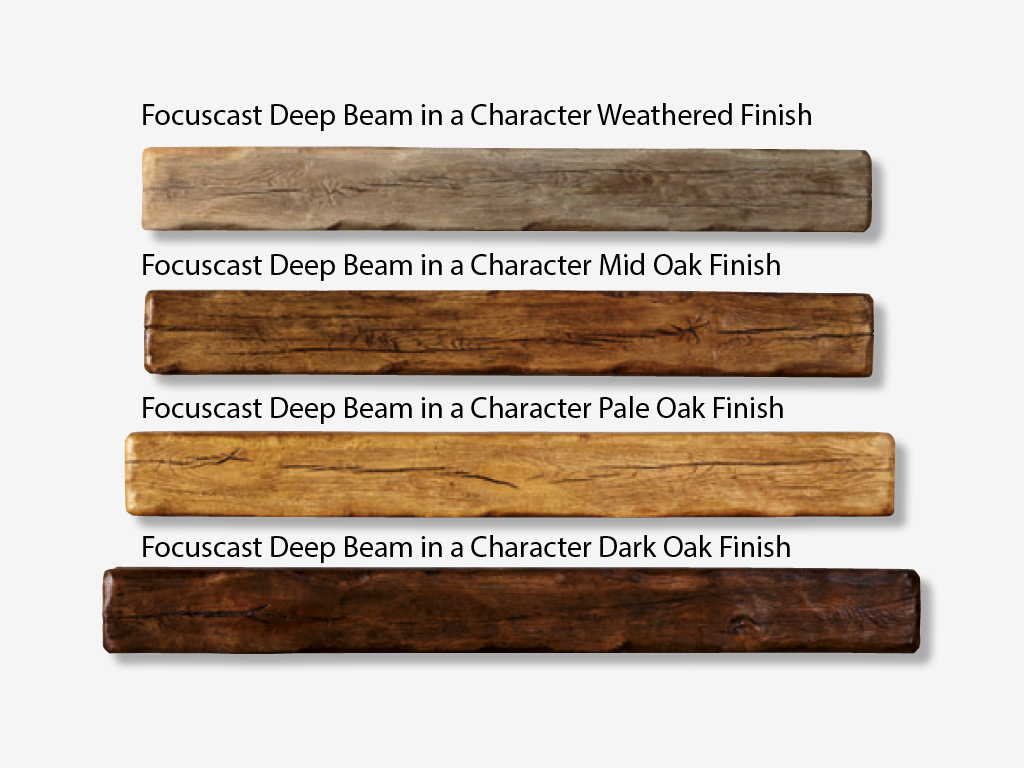

Colour Options
Dimensions
| Dimensions | Metric (mm) | Imperial (inches) |
| Profile | 140 x 140 | 51⁄2 x 51⁄2 |
| Standard Length | 1067 | 42 |
| Standard Length | 1220 | 48 |
| Standard Length | 1295 | 51 |
| Standard Length | 1370 | 54 |
Minimum clearances for non-combustible surrounds and beams: 250mm above the stove on a 5kw stove and 350mm on a 7kw stove.
| Mantel Length | 42", 48", 51", 54" |
|---|---|
| Material | Plaster |
